Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

Brand Name : Zynshield

Model Number : ZIPC24UC

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1

Price : 145USD/unit

Payment Terms : T/T

Supply Ability : 3000 pcs/month

Delivery Time : 5~7 days

Packaging Details : Standard Exportation Package

CPU : Intel N100

RAM : 1*SO DIMM DDR5, Max. 32GB

Storage : 1*NVME 2280; 1*SATA 3.0

LAN : 4*Intel i226 2.5Gbps LAN

4G Module : 1*mini PCIe slot

5G Module : 1*M.2 slot

Contact Now

Products Highlight

  • CPU: Intel Alder Lake-N N100/N150/N305/N355

  • Chipset: Intel® Alder Lake-N

  • BIOS: AMI 128M BIOS, ACPI supported, Power-on after power loss

  • Memory: 1x DDR5 slot, max 32GB

  • Network: 4x LAN ports (Intel i225/i226), POE support; SIM slots: 1x MP_4GSIM, 1x M.2_5GSIM

  • Display Support: HDMI: 4096x2160@60Hz; VGA or LVDS selectable; Multi-display support (synchronous/asynchronous)

  • Storage: 1x SATA III (6Gb/s); 1x M.2 SSD 2280 (NVMe/NGFF)

  • Serial Ports: RJ45_COM1 (RS232) or COM1 header; 6x RS232 headers, COM2 supports RS485

  • USB: 2x USB 3.0; 6x USB 2.0 (including encrypted port)

  • Expansion: 1x mPCIe (for 3G/4G); 1x M.2 B-KEY (for 4G/5G)

  • Hardware Monitoring: Watchdog timer (0-2555 sec); Fan speed detection and control

  • Hardware Control: Power-on after power loss (jumper-selectable); TPM 2.0; GPIO (4-way I/O)


CPU
Intel Alder Lake-N N100/N150/N305/N355
Processor System Chipset Intel® Alder Lake-N

BIOS AMI 128M BIOS, ACPI supported, Power-on after power loss
Memory Slot 1x DDR5 SO-DIMM slot, Max. supports 32GB
Network LAN 4x LAN (Intel i225/i226), Supports POE power

SIM 1x MP_4G SIM card slot, 1x M.2_5G SIM card slot
Display Support HDMI Supports 4096x2160@60Hz

VGA1 Either-or with LVDS interface, 1x 12-pin pin header (2.0mm)

LVDS Upper CH7513 compatible with EDP, 2x 15-pin pin header (2.0mm)

Multi-Display VGA/HDMI/LVDS, Supports synchronous or asynchronous display
Storage Devices SATA 1x SATA III interface, Max. transfer rate 6Gb/s

M.2 1x M.2 SSD 2280 (NVME/NGFF)
Serial Ports RJ45_COM1 1x RS232, Either-or with COM1 pin header

COM 6x RS232, Pin header 2.00mm, COM2 supports RS485
USB USB 3.0 2x USB 3.0

USB 2.0 6x USB 2.0 (2x via 5-pin pin header 2.00mm), 1x Encrypted USB 2.0 port
Expansion Interfaces mPCIe 1x mPCIe (Supports 3G/4G modules)

4G/5G 1x M.2 B-KEY (Supports 4G/5G modules)
Hardware Monitoring Watchdog 0-2555 seconds, System reset

Fan CPU fan/System fan speed detection & intelligent control
Hardware Control Power-on after loss JATX_AT jumper: Short pins 1-2 (OFF), Short pins 2-3 (ON)

TPM TPM 2.0 hardware encryption

GPIO Supports 4 input/output channels
Power Specs DC_IN Wide voltage 12-24V DC input, DC jack 5.5*2.5mm
Temperature Storage -20℃ ~ 70℃

Operating -0℃ ~ 60℃
PCB Specs Dimensions 170mm x 170mm


CPU Comparison


Parameter Celeron N100 Celeron J4125 Celeron N5105 Celeron J6412
Generation Alder Lake-N (12th) Gemini Lake Refresh Jasper Lake (10th) Elkhart Lake (11th)
Cores/Threads 4C / 4T 4C / 4T 4C / 4T 4C / 4T
Base Clock 1.0 GHz 2.0 GHz 2.0 GHz 2.0 GHz
Max Turbo Clock 3.4 GHz 2.7 GHz 2.9 GHz 2.6 GHz
TDP (Thermal Design Power) 6W (cTDP: 4.8–10W) 10W 10W 10W
Integrated Graphics Intel UHD (24 EU) Intel UHD 600 (12 EU) Intel UHD (24 EU) Intel UHD (16 EU)
Lithography Intel 7 (10nm) 14nm Intel 10nm Intel 10nm
Memory Support DDR5/LPDDR5, DDR4 DDR4/LPDDR4 DDR4/LPDDR4 DDR4/LPDDR4
Max Memory Capacity 16GB 8GB 16GB 32GB
Launch Date Q1 2023 Q4 2019 Q1 2021 Q1 2021

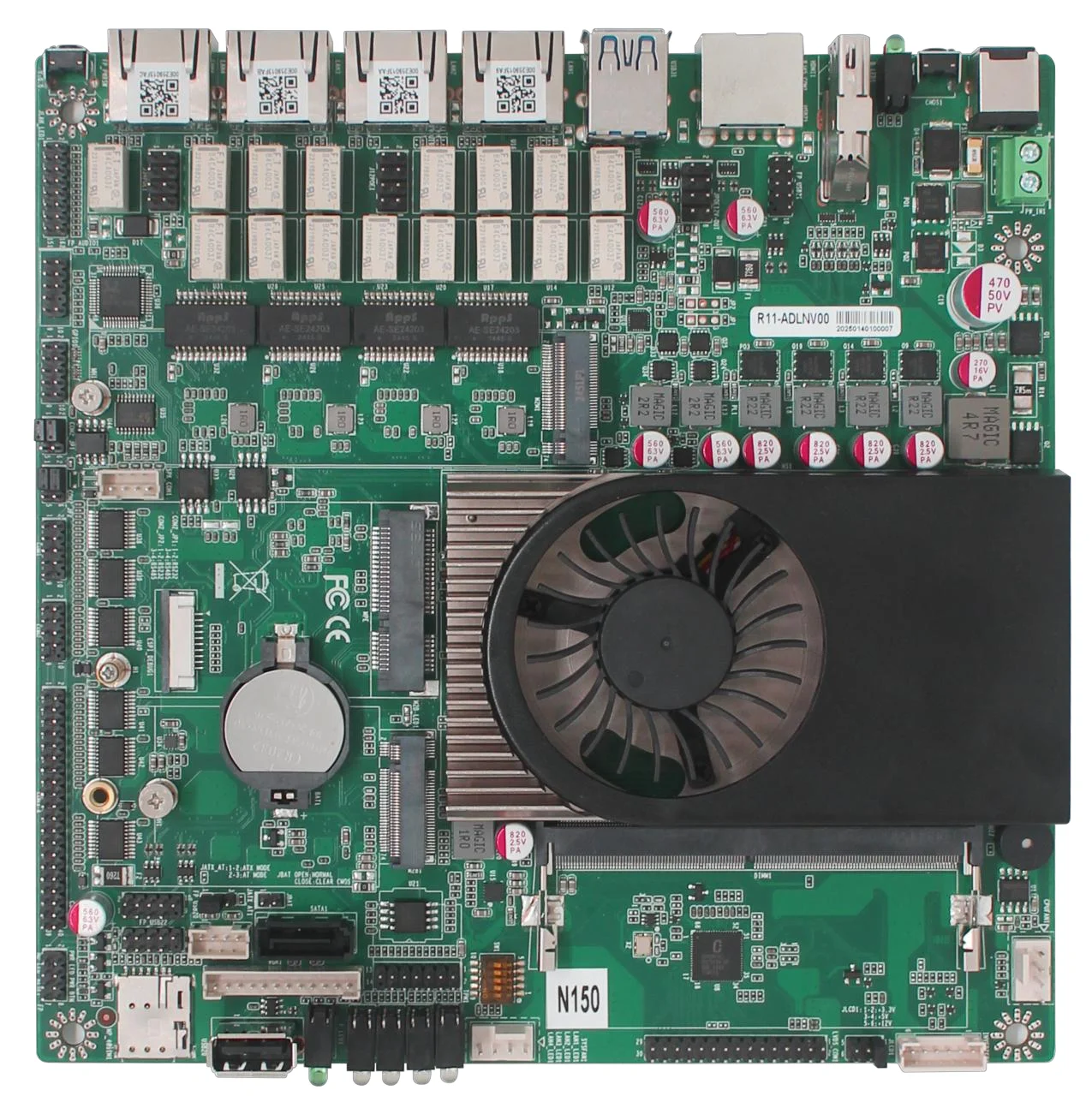

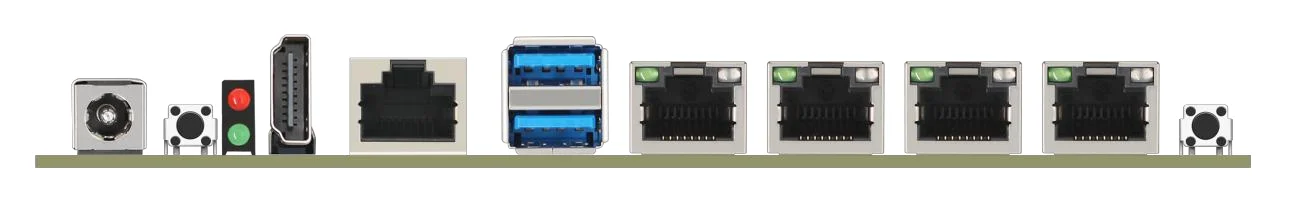

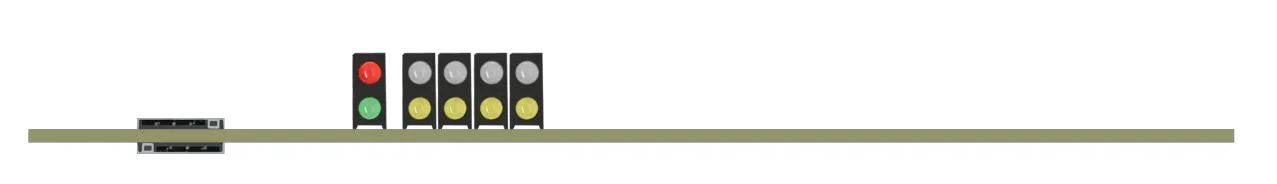

Products Design


Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

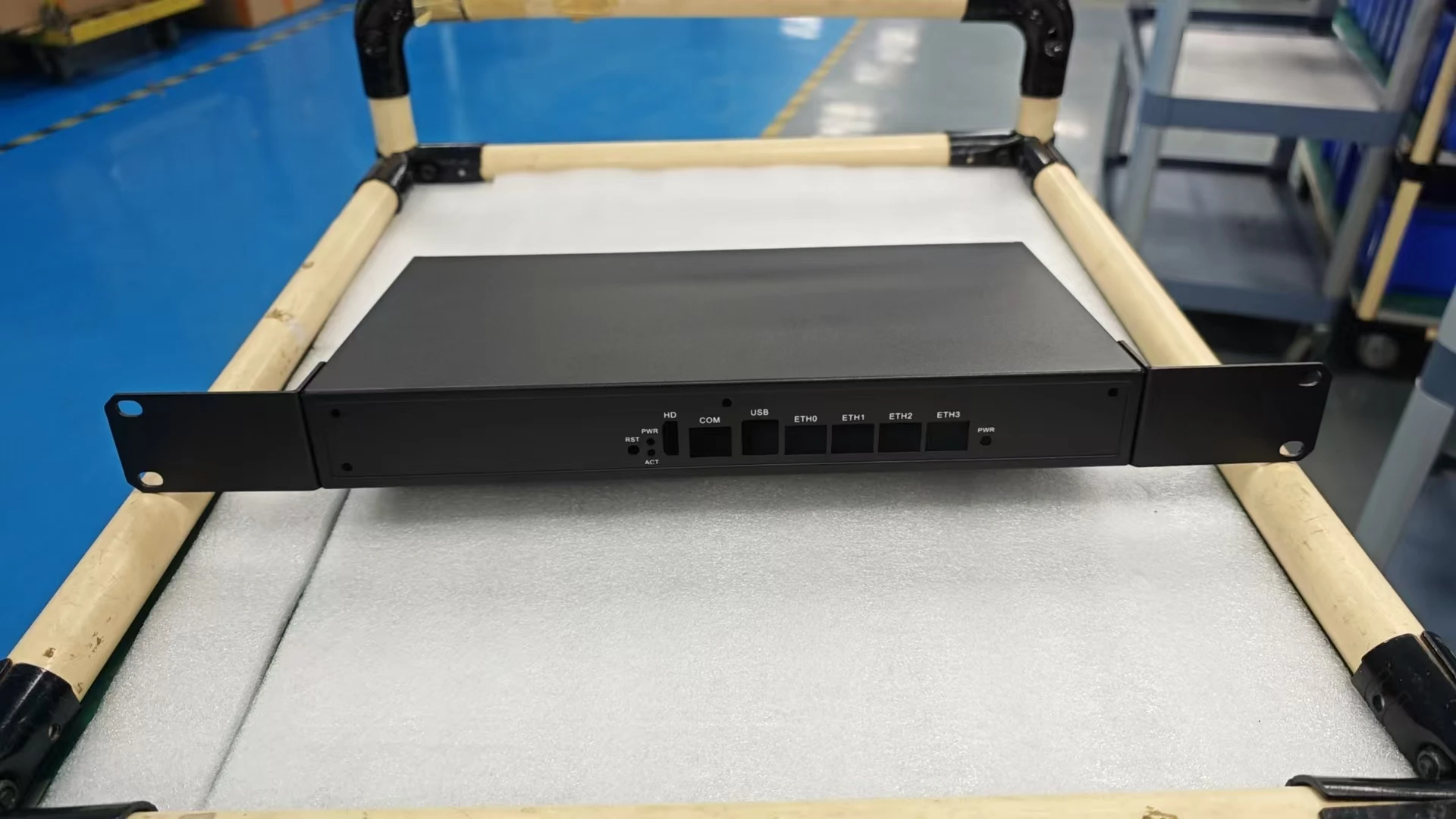

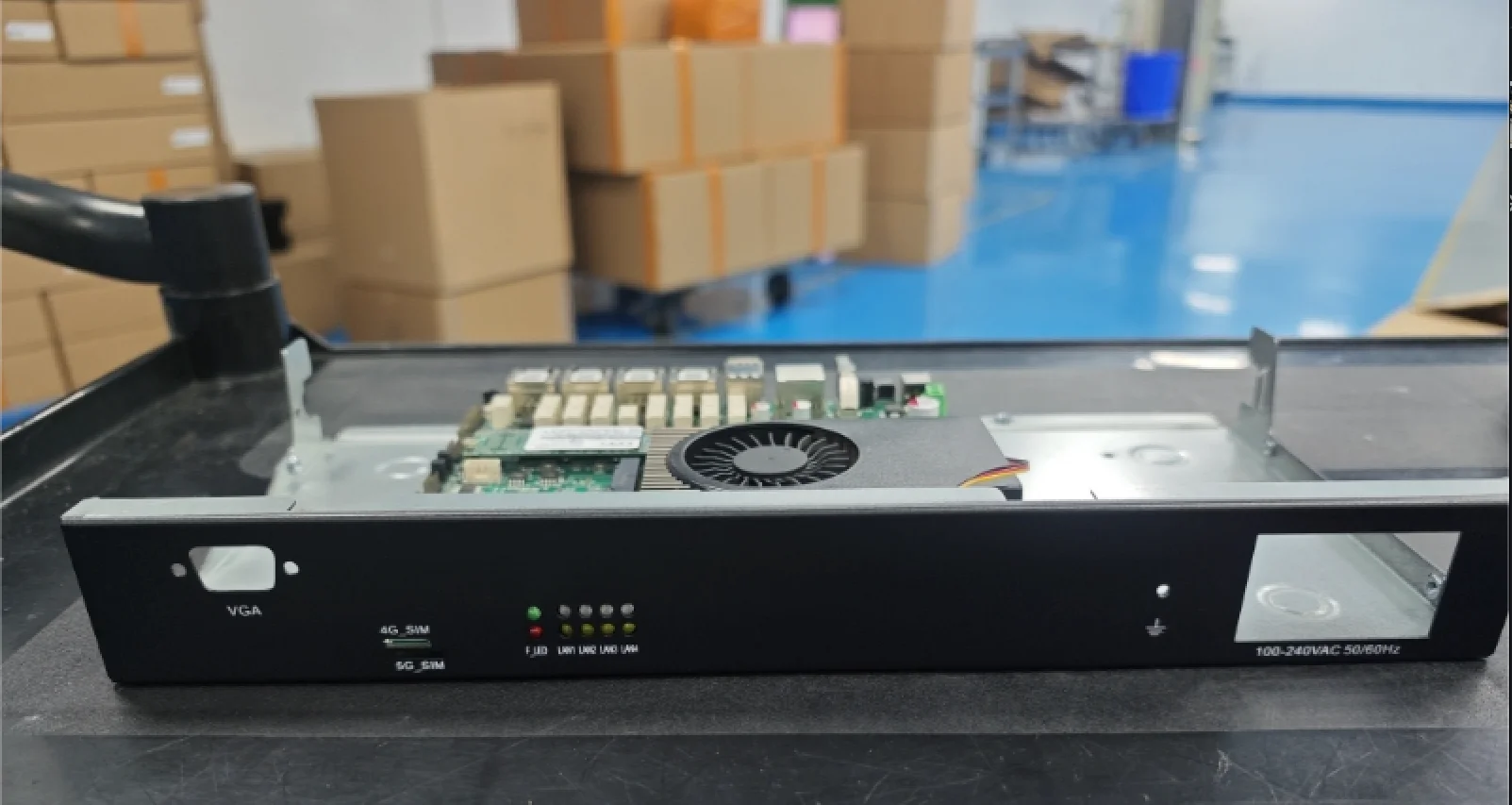

Chassis Options


Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports

Zynshield 1U Barebone Rackmount Firewall with Intel N100 4 2.5G LAN 4G 5G SIM Supporting External SFP+ Ethernet Ports



Shipping Solution

  1. We offer three shipping options: DHL, UPS, and FedEx.

  2. If you maintain your own DHL, UPS, or FedEx account, we can arrange shipping using your account at no additional charge.

  3. If you have a designated freight forwarder in China, we will deliver the goods directly to your forwarder without extra fees. Furthermore, we will coordinate directly with your forwarder and prepare all necessary documentation.

  4. For your reference in freight cost estimation, should you require product packaging dimensions and weight details, please feel free to contact us. We will respond to your inquiry promptly.

About Customization


All products can be customized according to your requirements, including:

  • Chassis (color, appearance, etc.)

  • Motherboard (number of Ethernet ports, chipset type, SIM card slot expansion, etc.)

  • Carton (logo customization)

The process is as follows:


Phase Stage Key Activities & Deliverables
1 Inquiry • Client submits detailed customization requirements
2 Requirements Confirmation • Supplier provides feasibility previews
• Client approves technical specifications
3 Feasibility Analysis • Technical validation of design/production
• Risk assessment report
4 Quotation • Detailed cost breakdown
• Production timeline with milestones
5 Place Order • Contract execution with payment terms
• Final requirement verification (double-check)
6 Mass Production • Bulk manufacturing launch
• Quality control during production
7 Pre-Delivery Audit • Export documentation (HS code, invoice)
• Declared value verification
• Final QC inspection
8 Delivery & Support • Logistics coordination
• Real-time shipment tracking
• Post-delivery support
